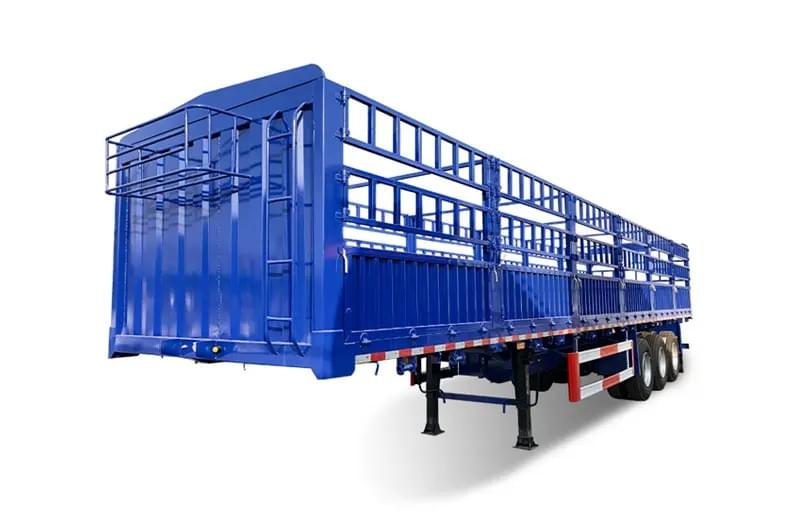

Fence Semi Trailer

Reliable Fence Trailers for Secure, Versatile Hauling
Built to maximize your fleet productivity and profitability, our fence semi trailers are the ideal solution for everyday commercial transport of bulk, agricultural and general cargo. Whether you haul grain, construction materials, palletized freight or loose industrial goods, these trailers deliver the versatility and cargo security you need to keep your operations moving smoothly.
The modular, removable fence design allows for fast, multi-sided loading and unloading, while preventing cargo from shifting or falling out during transit. Constructed from high-grade steel with a reinforced frame and corrosion-resistant treatment, these trailers offer exceptional strength and durability while maintaining optimal weight distribution, allowing you to haul more payload per trip and increase your revenue. The customizable fence height and foldable design also let you convert the trailer into a flatbed for oversized loads, adding extra versatility to your fleet.
Features
Our fence semi trailers are purpose-built for transporting bulk materials, agricultural goods, construction supplies and general freight, including grain, produce, loose aggregates, building materials and palletized cargo. Engineered to handle versatile loads ranging from 30T to 80T, they deliver reliable performance even in long-haul deliveries, farm-to-market routes and challenging road conditions.
Constructed from premium high-strength steel with advanced lightweight design and strict production technology, these trailers feature a reinforced, fatigue-resistant structure that ensures exceptional durability and long service life. The modular, removable fence panels provide secure containment for loose or shifting cargo while allowing for excellent ventilation to prevent spoilage of agricultural goods. Every critical component is sourced from leading global manufacturers and undergoes rigorous quality inspections to guarantee consistent performance and minimal downtime.
The specialized chassis design, built with advanced manufacturing technology, delivers superior load-bearing capacity and structural integrity. Available in various fence heights, foldable/removable configurations and multi-axle setups, they can be customized to meet the specific operational needs of your bulk and agricultural transport business. The multi-stage anti-corrosive treatment process provides robust protection against harsh weather and road conditions, extending the trailer’s service life and reducing maintenance costs.
Parameter Specification Basic Information Model Fence Semi Trailer Application Bulk Cargo, Vegetable, Livestock, General Goods Transportation Axle Configuration 2 Axles / 3 Axles / 4 Axles (Optional) Gross Vehicle Weight (GVW) 35T(2Axle) / 40T(3Axle) / 60T(4Axle Heavy Duty) Rated Payload 22T(2Axle) / 33T(3Axle) / 50T(4Axle Heavy Duty) Tare Weight ≈5.0T(20ft 2Axle) / ≈6.2T(40ft 3Axle) Dimension Parameters Overall Dimension (L×W×H) 7600×2550×3600mm (20ft)
12400×2550×3600mm (40ft)Internal Dimension (L×W×H) 7400×2480×2400mm (20ft)
12200×2480×2400mm (40ft)Wheelbase 4200+1310mm (20ft 2Axle)
5200+1310+1310mm (40ft 3Axle)Platform Height 1300mm (Unloaded) Ground Clearance ≥260mm Chassis & Body Structure Main Beam Q345B High Strength Steel, I-beam
Standard: Height 500mm, Upper 14mm, Lower 16mm, Web 8mmFloor 3mm Checkered Steel Plate / 4mm Bamboo Plywood (Optional) Fence & Side Wall Removable Steel Fence, 2-3 Layers
Height: 600/800/1000mm (Optional)Vertical Columns Square Steel Columns, Spacing 500mm, Detachable Front Wall 2mm Steel Plate with Reinforced Support Frame Rear Door Double Split Doors / Full Fence Door (Optional) Surface Treatment Shot Blasting + Epoxy Primer + Polyurethane Topcoat Suspension & Running Gear Axle Brand & Capacity BPW / FUWA / JOST (Optional)
13T (Standard) / 16T (Heavy Duty) Per AxleSuspension Type Mechanical Leaf Spring Suspension (Standard)
Air Suspension (Optional)Leaf Spring 90mm(W)×16mm(T)×10 Layers (Standard Type) Tire & Rim 12R22.5 Radial Tire + 8.0-22.5 Steel Rim Landing Gear 28T Two-speed Manual Landing Gear King Pin 2.0 inch (50#) Standard Bolt-on Type Braking & Safety System Braking System Dual-line Pneumatic Brake System Anti-lock Braking System 4S/4M ABS (Standard) Brake Chamber T30/30 Spring Brake Chamber Air Tank 3×40L Steel Air Tanks with Drain Valve Safety Devices Side Guard Rails + Rear Under-run Protection
Reflective Strips, LED Warning Lights, Fire Extinguisher BracketStandard & Optional Configuration Standard Configuration 24V Electrical System, Full LED Lights
Tool Box, Spare Tire Carrier, Mudguards
Lashing Rings, Side Support LegsOptional Configuration Lift Axle, EBS Electronic Braking System
Customized Fence Height & Color
Tarpaulin Rods, Rainproof Curtain
Reinforced Chassis, Livestock Special FenceNote: All specifications are subject to final confirmation. Customized design is available according to customer requirements and local regulations.Your Journey Starts with YUSUN
