• MINING TRUCKS

  • Lifting Heavy Loads with Ease

    Whether transporting coal, gold, or nickel ores, or handling various minerals like crushed stone, metallic ores, and gravel, the HOWO mining trucks can easily cope with them all. Boasting a robust payload capacity of 30T-135T, as well as excellent safety, high attendance rate and high reliability, HOWO mining trucks ensures your ore transportation efficient and worry-free.

  • Powerful Performance

    Equipped with high-power engine, providing strong power output, adapting to the operation needs under complex working conditions. Optimized engine design improves fuel economy and reduces operating costs.

    Durable Chassis

    Reinforced vehicle frame structure enhances the rigidity and bearing capacity of the whole vehicle.

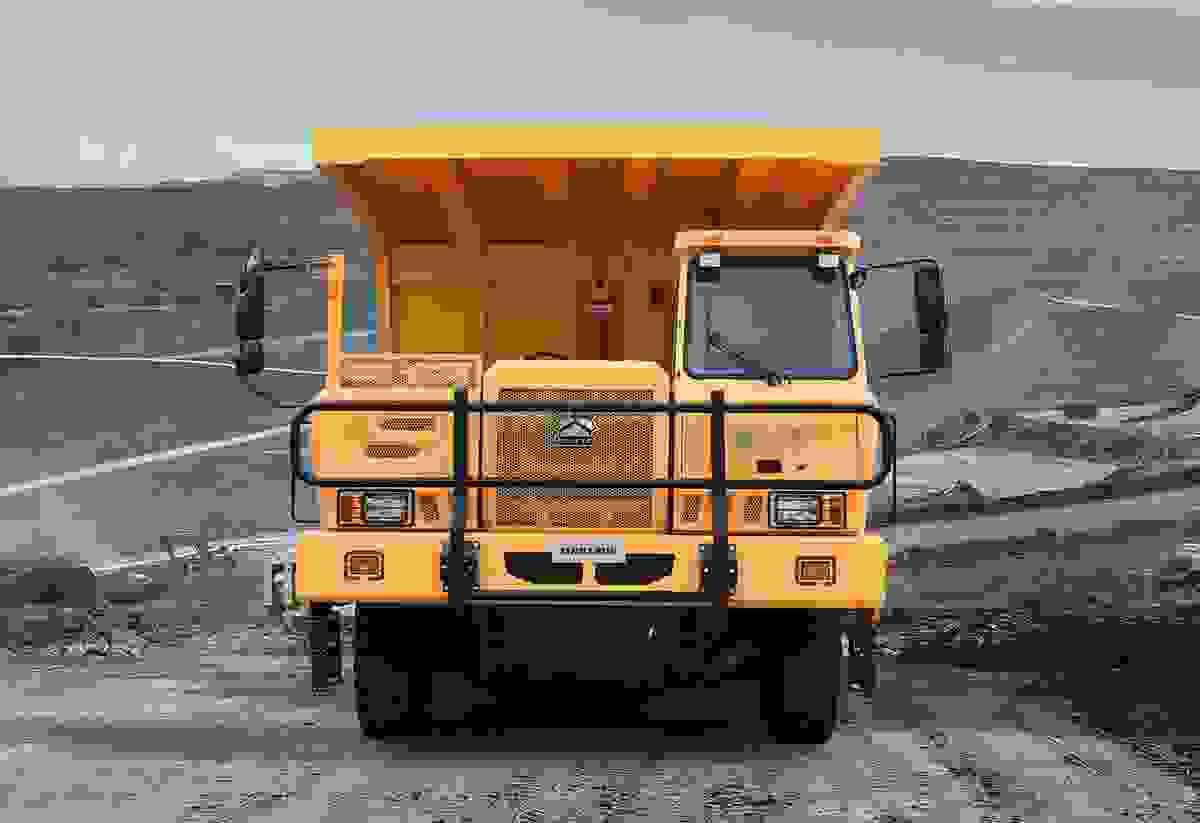

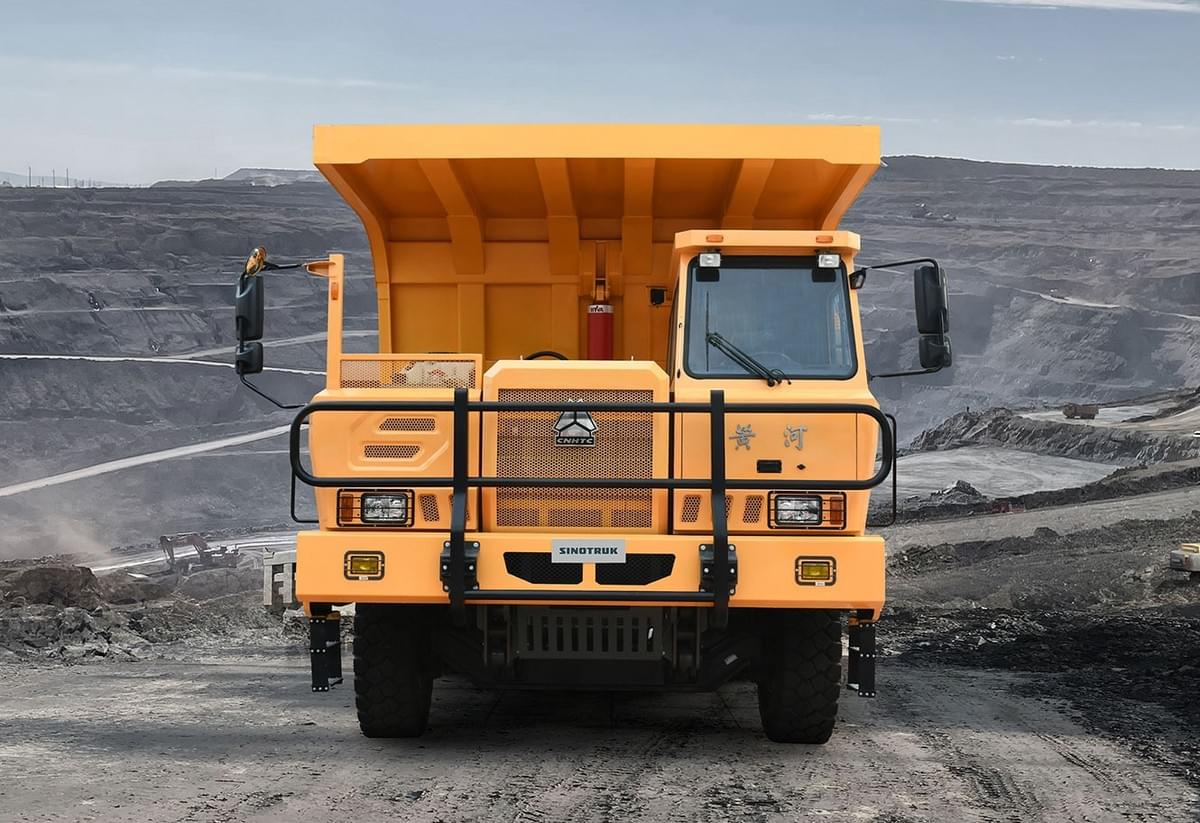

  • Our Sinotruk trucks are renowned for their reliability and performance. We pride ourselves on providing vehicles that meet stringent quality standards, ensuring that you receive a product that can handle the demands of your business operations. High-Quality Trucks What We Offer sinotruk货车经销商

    Safe Driving Cabin

    Pioneered in China, the single-sided, skeletal frame with skin structure maximizes the field of view.

    We offer extensive after-sales support, including maintenance services and spare parts availability. Our team is committed to keeping your fleet running smoothly and efficiently, minimizing downtime for your operations. Comprehensive Support What We Offer sinotruk货车经销商

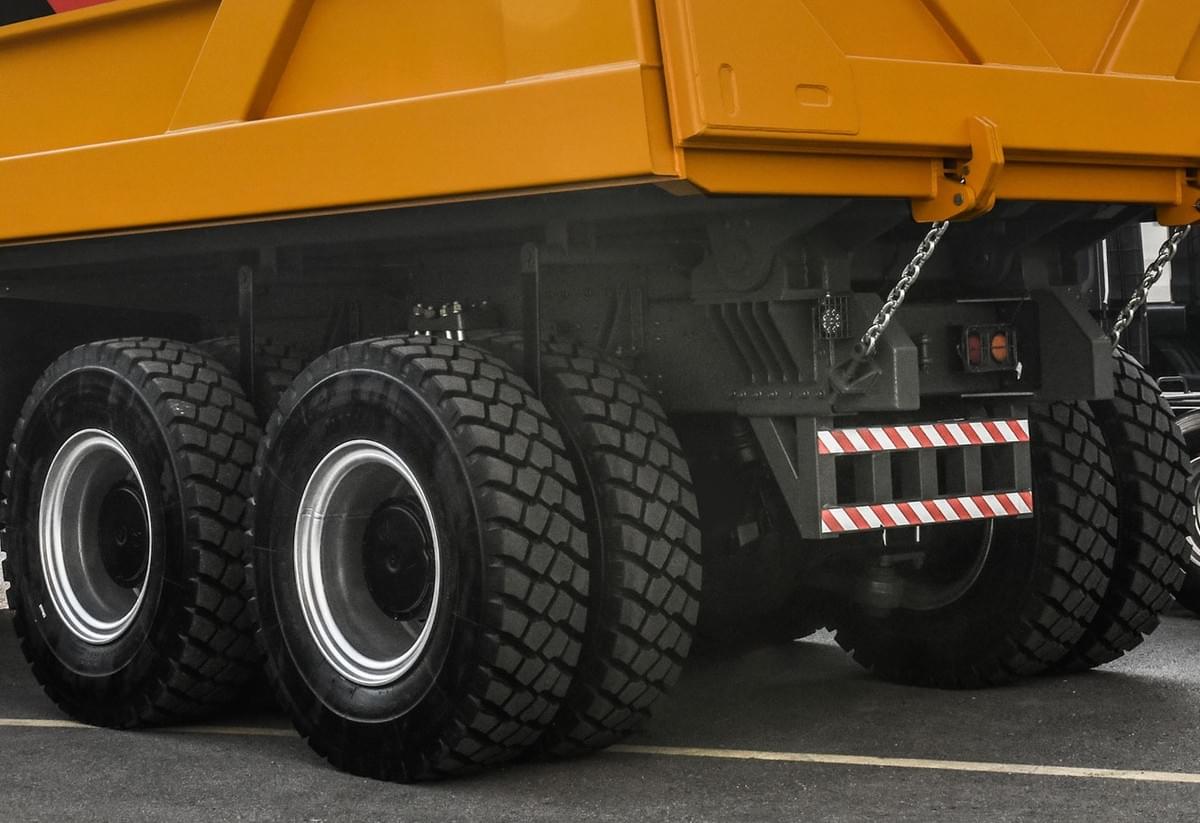

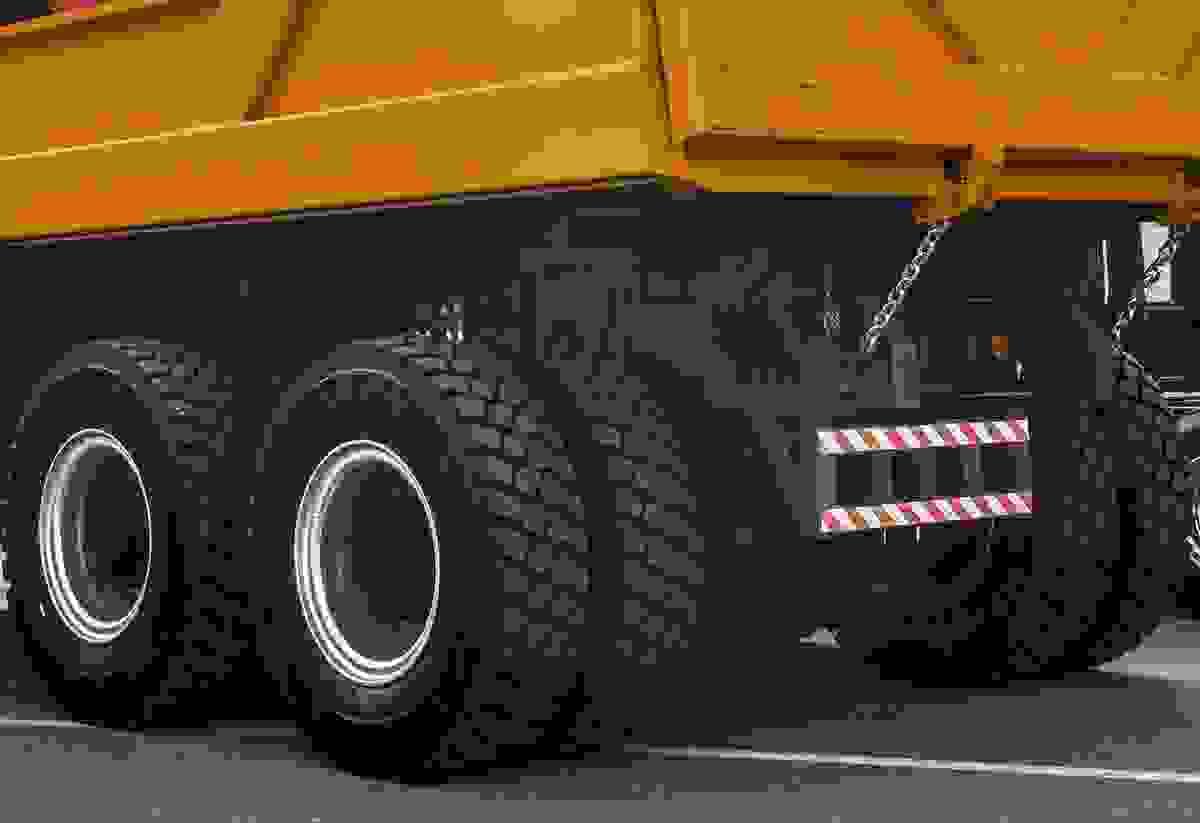

    Powerful Tires

    Large-size tires are suitable for a wider range of operating conditions, providing enhanced grip and load-carrying capacity.

  • Configurations of Mining Trucks

    Vehicle model 70T, 50T, 30T
    GVW(T) 18-41
    Drive mode 6x4
    Cab HW7D, WR-D
    Engine WD615, WT615 T12 MC11
    9.726 11.596 10.518
    340-440 (70T, 50T), 300-371 (30T)
    Euro II - Euro V Euro III - Euro V
    Diesel, natural gas
    Transmission Model 70T and 50T: HW10, HW12; 30T: HW10
    Control mode MT
    Remarks
    1. Power ≤ 340 Ps, HW15710 will be selected
    2. 340 Ps < Power ≤ 380 Ps, HW19710 will be selected and HW19712 is optional
    3. Power > 380 Ps, HW21710 will be selected and HW21712 is optional
    Axle Front axle (T) 9, 10, 12
    Rear axle (T) Hub reduction drive axle: 16, 26
    Width of truck 70T: 3300mm, 50T: 3000mm, 30T: 2500mm
    Cargo tank max. volume
    70T: 30m2 (wheel base K36, K38, K40), 60m2 (wheel base K48)
    50T: 24m2 (wheel base K36, K38, K40), 48m2 (wheel base K46)
    30T: 15.4 m2
    Steering gear ZF8118 (left hand driving), ZF 8098 (right hand driving)
    Clutch 430 diaphragm clutch
    Tyre
    14.00-25 is standard and 14.00R25 is optional for 70t mine tipper;
    14.00-20 is standard and 14.00R20, 13.00-25 and 13.00R25 are optional for 50t mine tipper;
    12.00-20 is standard and 12.00R20 is optional for 30t mine tipper.
    Fuel tank
    500L D shape aluminum fuel tank is standard and 400L D shape aluminum fuel tank is optional for 70t minetipper;
    400L D-shape aluminum fuel tank is standard for 50t mine tipper.
    LNG model is equipped with a 450L side-mounted gas bottle; as standard, a 300L aluminium alloy square fuel tank is supplied with each 30t mine tipper, while a 400L iron military square tank is optional when the wheelbase is over 3.8m.

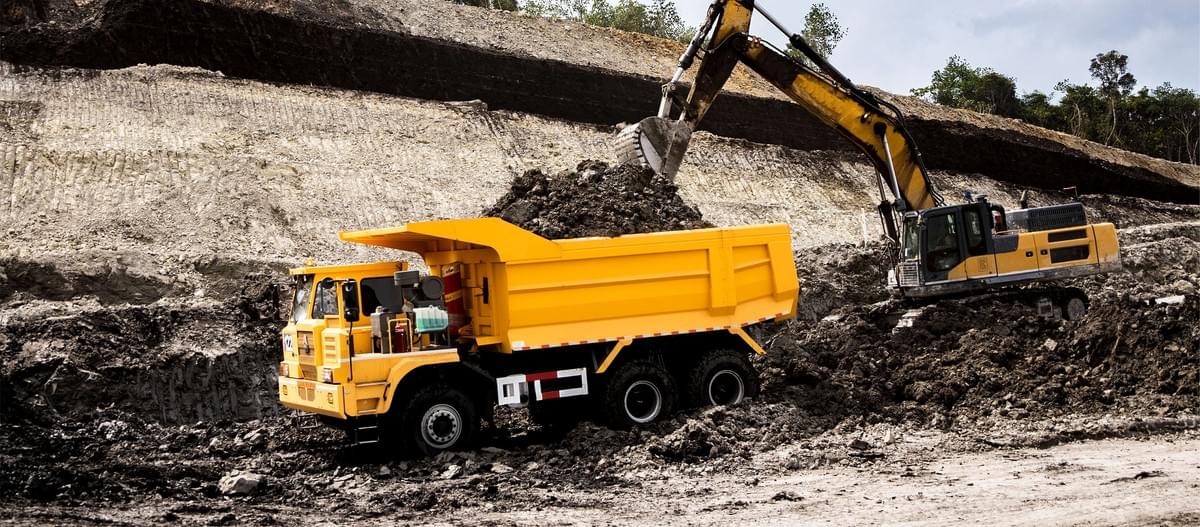

  • Product Applications

  • Your Journey Starts with Yusunauto

    Discover Reliable SINOTRUK: Built for Performance and Efficiency
