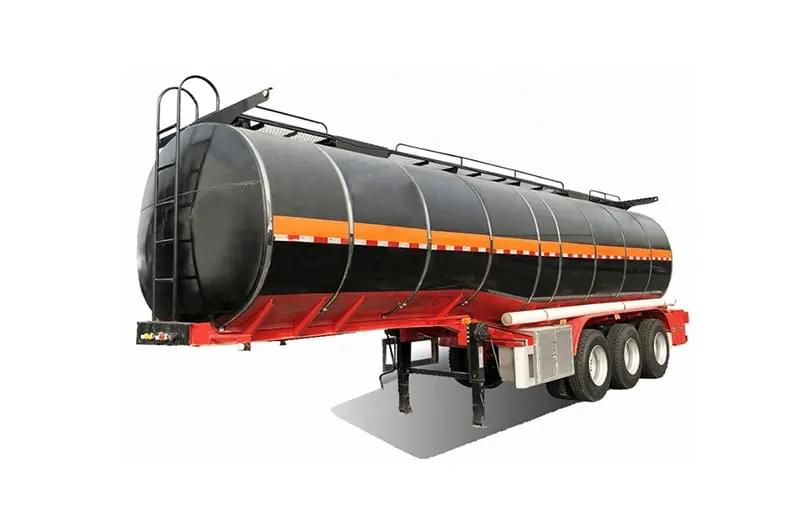

Fuel Tank Trailer

Reliable Fuel Tank Trailers for Safe, Compliant Bulk Liquid Transport
Built to maximize your fleet productivity and operational safety, our fuel tank semi trailers are purpose-built for secure bulk liquid fuel transport, including diesel, gasoline, industrial fuels and petroleum products. Whether you deliver to gas stations, industrial facilities or remote worksites, these trailers deliver the compliant performance and zero-leak reliability you need to keep your operations moving safely and efficiently.
The advanced anti-leakage tank design and precision manufacturing ensure minimal product residual during unloading, eliminating waste and simplifying cleaning between loads. Constructed from high-grade aluminum or corrosion-resistant steel with reinforced tank heads, these trailers meet international safety standards and offer exceptional durability against harsh road conditions and corrosive fuels. The multi-compartment design allows you to transport different fuel types in a single trip, boosting fleet versatility and reducing empty runs to maximize your revenue.
Features
Our fuel tank semi trailers are purpose-built for transporting bulk liquid petroleum products, including diesel, gasoline, jet fuel, industrial fuels and other non-corrosive liquids. Engineered to handle capacities ranging from 30,000L to 60,000L, they deliver reliable, compliant performance even in long-haul deliveries, remote locations and challenging road conditions.
Constructed from premium corrosion-resistant aluminum alloy or high-strength steel with advanced structural engineering, these trailers feature a reinforced tank body with seamless welds to eliminate leak points. The anti-slosh baffles reduce liquid movement during transit, improving stability and reducing stress on the tank structure. The advanced low-residue discharge system ensures complete unloading with minimal product waste, while the multi-stage safety system includes emergency shut-off valves, anti-overfill protection and pressure relief devices to meet global regulatory requirements. Every critical component is sourced from leading global manufacturers and undergoes rigorous quality inspections to guarantee consistent performance and minimal downtime.
The specialized heavy-duty chassis design, built with advanced manufacturing technology, delivers superior load-bearing capacity and structural integrity. Available in single or multi-compartment configurations, different material options (aluminum/steel) and various axle setups, they can be customized to meet the specific operational needs of your fuel transport business. The multi-stage anti-corrosive treatment process provides robust protection against harsh weather and road conditions, extending the trailer’s service life and reducing maintenance costs over time.
Parameter Specification Basic Information Model Fuel Tank Semi Trailer Application Diesel, Gasoline, Crude Oil, Chemical Liquid Transportation Axle Configuration 2 Axles / 3 Axles / 4 Axles (Optional) Volume Capacity 30,000L(2Axle) / 42,000-45,000L(3Axle) / 50,000L(4Axle) Gross Vehicle Weight 35T(2Axle) / 40T(3Axle) / 60T(4Axle) Tare Weight ≈5.8T(Carbon Steel) / ≈4.2T(Aluminum Alloy, Optional) Dimension Parameters Overall Dimension (L×W×H) 9500×2500×3600mm (2Axle)
11800×2500×3700mm (3Axle)
12800×2500×3800mm (4Axle)Tank Body Size (Diameter×Length) Φ2200-Φ2500mm × 8500-11500mm Wheelbase 4400+1310mm (2Axle)
5500+1310+1310mm (3Axle)
6600+1310+1310+1310mm (4Axle)Ground Clearance ≥260mm Tank Body Structure Tank Material Q235B Carbon Steel (Standard) / 5083 Aluminum Alloy (Optional) Tank Thickness Carbon Steel: 5-6mm; Aluminum Alloy: 4-5mm Compartment Design Single / Multi-Compartment (1-5 Rooms, Optional) Baffles Built-in Anti-wave Baffles, Reduce Liquid Sloshing Manhole Cover European Standard Anti-static Manhole Cover Surface Treatment Sandblasting + Anti-corrosion Primer + Polyurethane Topcoat Suspension & Running Gear Axle Brand & Capacity BPW / FUWA, 13T-16T Per Axle (Optional) Suspension Type Mechanical Suspension (Standard) / Air Suspension (Optional) Leaf Spring 90mm(W)×16mm(T)×10 Layers (Reinforced Type) Tire & Rim 12R22.5 Radial Tire + 8.0-22.5 Steel Rim Landing Gear 28T Two-speed Manual Landing Gear King Pin 2.0 inch (50#) Standard Bolt-on Type Braking & Safety System Braking System Dual-line Pneumatic Brake System Anti-lock Braking System 4S/4M ABS (Standard) / EBS (Optional) Emergency Cut-off Valve European Standard Emergency Shut-off Valve (Standard) Safety Devices Anti-static Device, Fire Extinguisher, Breath Valve
Side Guard Rails + Rear Under-run Protection
Reflective Strips, LED Explosion-proof LightsStandard & Optional Configuration Standard Configuration 24V Electrical System, LED Lights, Oil Unloading Valve
Tool Box, Spare Tire Carrier, Mudguards
Oil Delivery Hose, Flow Meter InterfaceOptional Configuration Digital Flow Meter, Lift Axle, Heating System
Aluminum Alloy Tank, Multi-compartment Separation
Customized Volume & Color, GPS Tracking SystemNote: All specifications are subject to final confirmation. Customized design is available according to customer requirements and local regulations.Your Journey Starts with YUSUN
